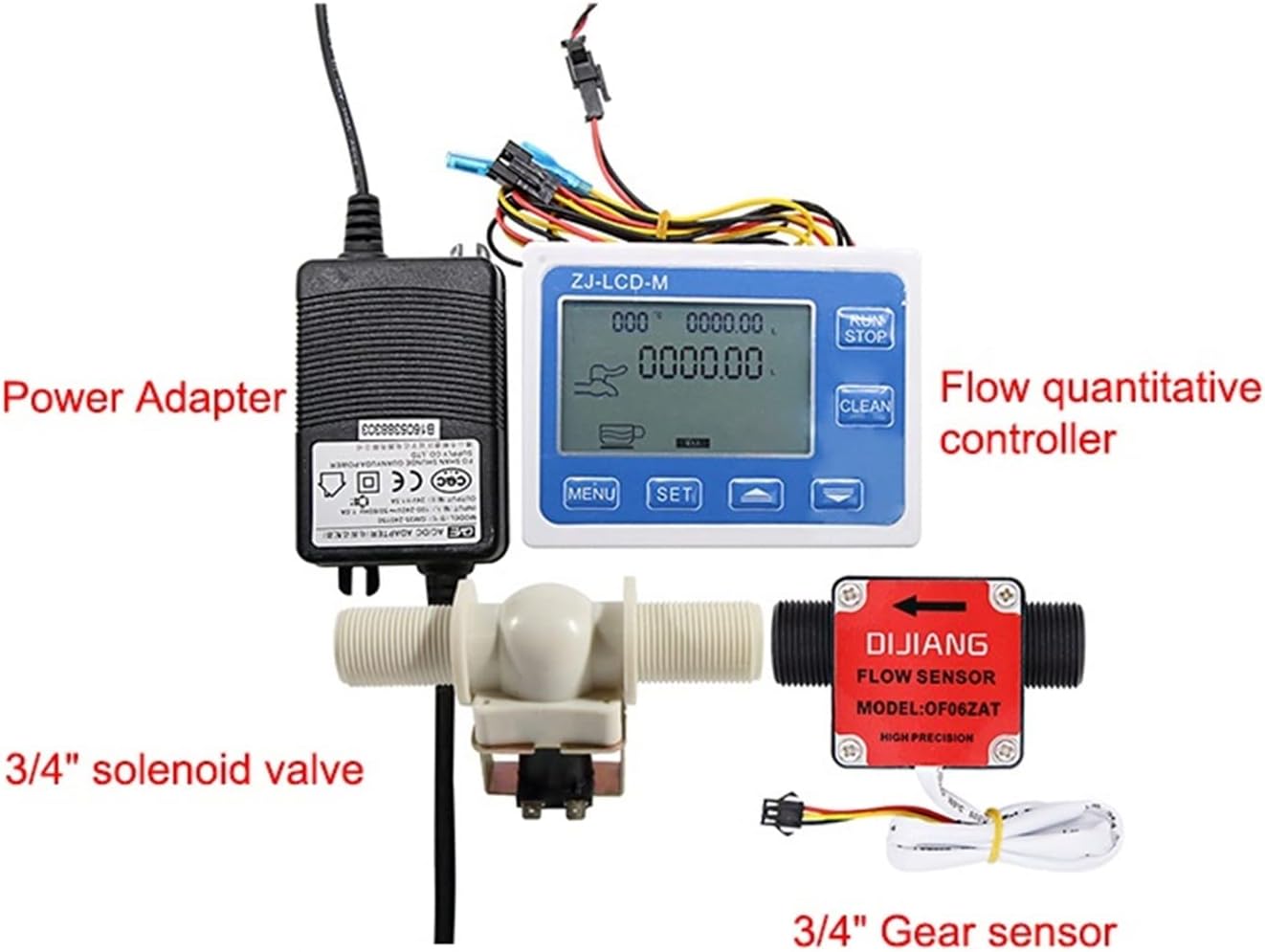

Water Flow Meter, DN20 Digital Display Flow Quantitative Controller 3/4inch Gear Sensor Solenoid Valve Use To Control And Liquid
Product details
| Management number | 221349894 | Release Date | 2026/05/03 | List Price | $164.00 | Model Number | 221349894 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Gear sensor parameters:Output signal: the default output NPN pulse signal (if you need to connect to the PLC, please contact customer service before placing an order)Model: OF06ZATInterface size: DN20 (3/4")Working voltage range: DC5-18VWorking current: 10MA(DC5V)Inner diameter/outer diameter: 16mm/26mmThread length: 18.7mmMaterial: PPSPressure: 1.2MPaFlow range: 30- 3000 L/HApplicable temperature: 80Applicable humidity: 35%~95%RH (no frosting state)Applicable medium: non-corrosive low-viscosity liquidTightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformationFlow pulse characteristics: F= (1.2*Q) error 3%Solenoid valve parameters:Working voltage: DC12V Inner diameter/outer diameter: 20mm/26mmThread length: 38mmSpecification: 3/4"Power: 5WTake over method: water inlet 3/4" water outlet 3/4"Medium temperature: 0~100Working pressure: 0.02~0.8MPa
- Model:ZJ-LCD-M
- Working voltage:DC24V±8V/1A
- Solenoid valve:DC12V/0.3A-0.5A (Normally closed solenoid valve)
- Operating voltage:DC5V (flow probe input pulse signal)
- Quantitative range:0.1-9999 liters, K value can beplaced in the meter.
| Size | One Size |
|---|---|
| Color | One Color |
| Item Weight | 0.353 ounces |
| Part Number | 1005003819010431 |
| Manufacturer | LJIA |
| Power Source | ac |
| Number Of Pieces | 1 |
| Item model number | 1005003819010431 |
| Batteries Required | No |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Package Quantity | 1 |
