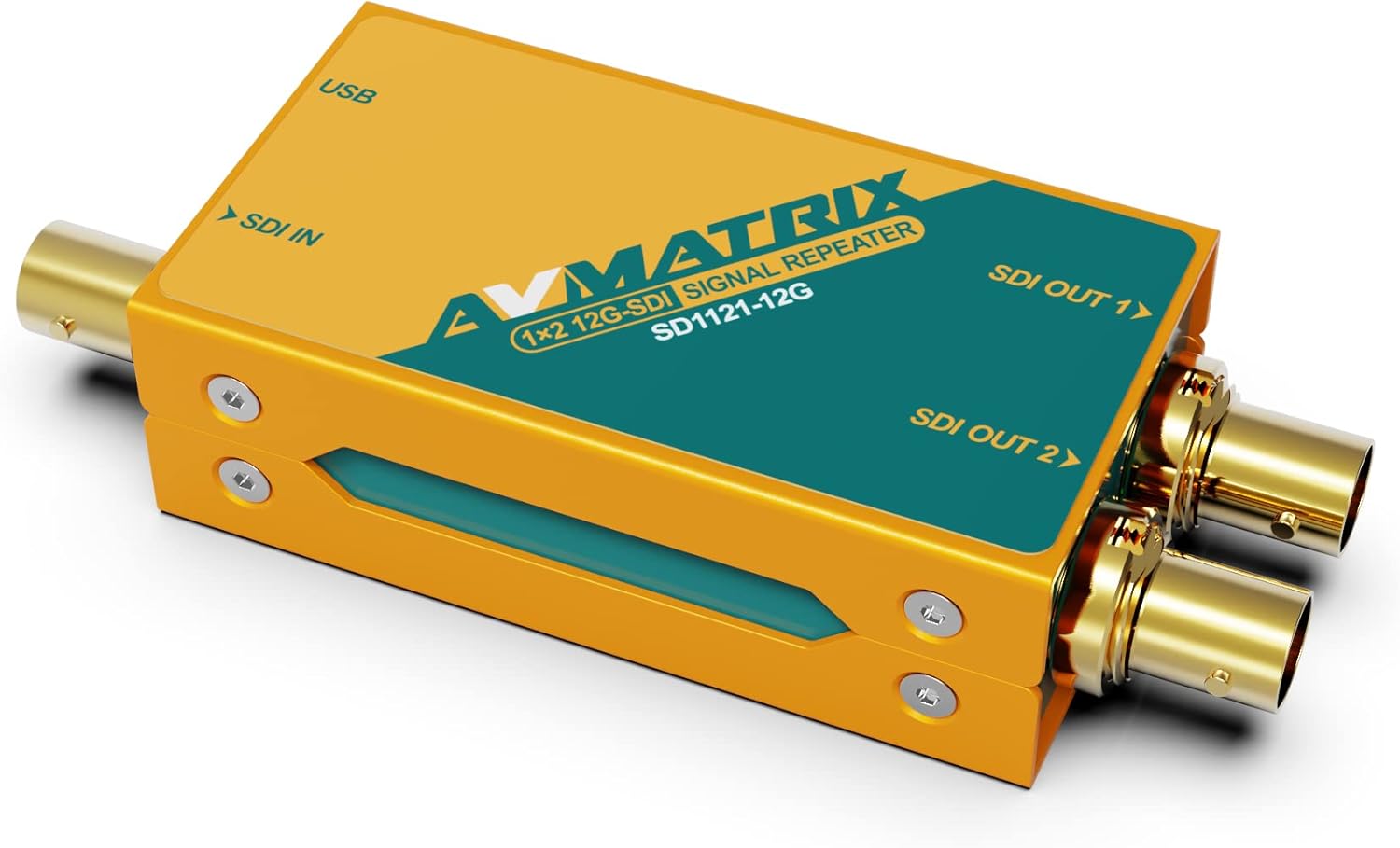

AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater - Auto Detects SD/HD/3G/6G and 12G-SDI
Product details
| Management number | 215133752 | Release Date | 2026/04/12 | List Price | $79.60 | Model Number | 215133752 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater - Auto Detects SD/HD/3G/6G and 12G-SDI Features: Input: 1x12G-SDI Output: 2x12G-SDI Automatically detects SD, HD, 3G, 6G, and 12G-SDI Support DVB-ASI signal Automatic cable equalization and signal retiming Pass all ancillary data and embedded audio 5V micro USB power Detachable bracket design for wall mounting Specifications: Input: SD/HD/3G/6G/12G-SDI/DVB-ASI x1 Output: SD/HD/3G/6G/12G-SDI/DVB-ASI x2 SDI Video Rate: SD/HD/3G/6G/12G-SDI SDI Compliance: SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M ASI Compliance: DVB-ASISDI Color Space: YUV, RGB SDI Equalization and Re-Clocking: Yes, SDI input and output support up to 60m/100m for 12G/3G-SDI Power Connector: Micro USB Voltage Range: USB 5V Power Consumption: 1W Operating Temperature: -20°C ~ 60°C Storage Temperature: -30°C ~ 70°C Relative Humidity: 0% ~ 90% non-condensing Size: 105.5 x 41 x 23mm Weight: 156g Item Includes: 1x AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater 1x 5V power adapter x1 Warranty: 3 year limited
- AVMATRIX SD1121-12G 1x2 12G-SDI Signal Repeater - Auto Detects SD/HD/3G/6G and 12G-SDI
- Input: 1x12G-SDI Output: 2x12G-SDI Automatically detects SD, HD, 3G, 6G, and 12G-SDI Support DVB-ASI signal
- Automatic cable equalization and signal retiming Pass all ancillary data and embedded audio
- 5V micro USB power Detachable bracket design for wall mounting
| Brand | LILLIPUT |
|---|---|
| Range | 60 meters |
| Unit Count | 1 Count |
| Item Weight | 156 Grams |
| Manufacturer | LILLIPUT |
| BuiltIn Media | Cable |
| Connector Type | Micro USB |
| Compatible Devices | SDI cameras, SDI video switchers, SDI monitors |
| Data Transfer Rate | 12 Gigabits Per Second |
| Warranty Description | 3 years warranty |
