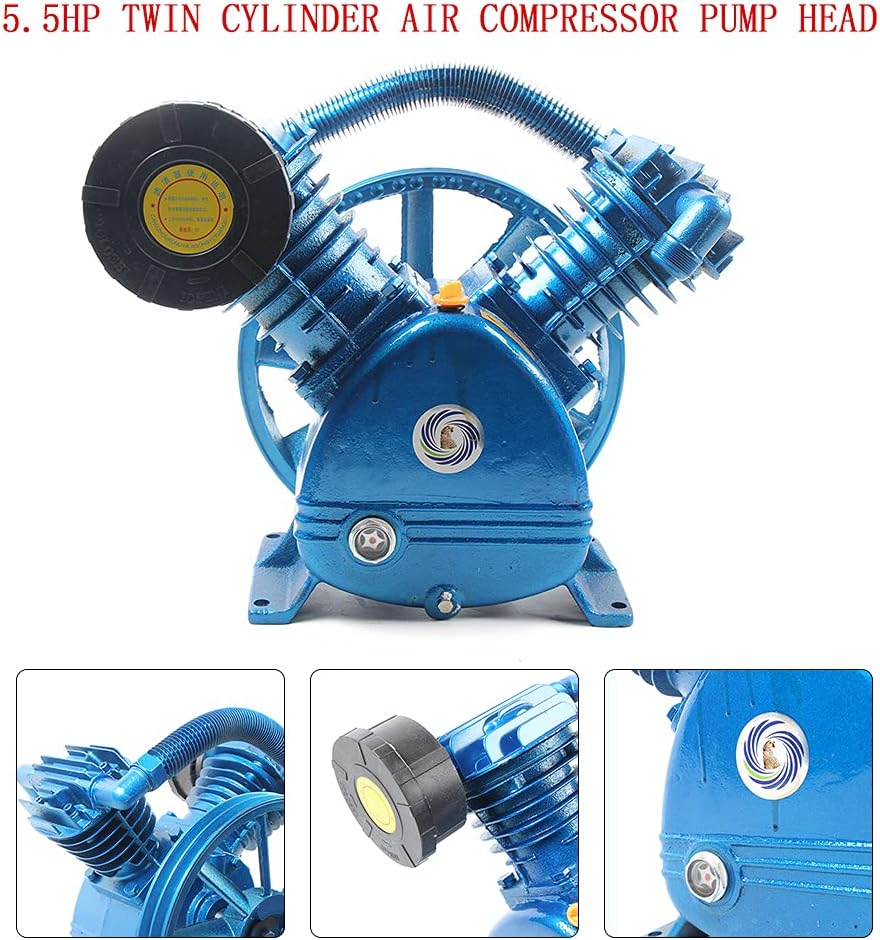

Air Compressor Pump Replacement 5.5HP 175PSI V-Type Twin Cylinder Air Compressor Pump Head Blue Single Stage 21CFM Air Compressor Head Piston Style Lubrication Pump

Specifications: Air delivery: 21CFM(0.6m³/h)Rated pressure: 175 PSI (1.16MPa)Driving power: 4KW (5.5HP) Pump speed: 800RPMCylinder diameter: 3.54" (90mm)Distance of screw hole: 26cm*14cm (10.2"*5.5")Rated exhaust volume: 0.6L/MinFeatures:High efficiency, high precision, universal, low energy consumption.High quality material, not easy to damage.Strict balance support and correction to ensure the smooth operation of the main engine.Special valve steel is used for hair piece, which has good strength and toughness at high temperature.Faster inflation and low noise.Strong cooling blade, good cooling performance.Installation notes:1、 When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.2、 Tighten the screws (including the base and pulley screws).3、 After the screws are installed, the belt shall be tightened. If the belt is loose, please move the motor. After the screws are tightened, reinstall the belt.4、 The new machine must be filled with engine oil before starting, and the engine oil shall be added to the center of the red point of the oil mirror.5、 The rotation direction of the pump head is clockwise. If it reverses, please adjust it in time.6、 Change the oil for the first half month, the second one and a half months, and the next two to three months.

• ♛ Specifications: Air deli-very: 21CFM(0.6m³/h);Rated pressure: 175 PSI (1.16MPa);Driving power: 4KW (5.5HP) ;Pump speed: 800RPM;Cylinder diameter: 3.54" (90mm);Distance of screw hole: 26cm*14cm (10.2"*5.5");Rated exhaust volume: 0.6L/Min.
• ♛ High efficiency, high precision, universal, low energy;consumption.Faster inflation and low noise.Strong cooling blade, good cooling performance.
• ♛ V-style cylinder design for superior cooling,Special valve steel is used for hair piece, which has good strength and toughness at high temperature.
• ♛ High quality material, not easy to damage.Full cast iron pump for long service life. Strict balance support and correction to ensure the smooth operation of the main engine.
• ♛ Note: If the motor speed is 2880rpm, the diameter of the motor wheel is 10 cm. If the motor speed is 1440rpm, the motor wheel is 20 cm
